SKU: 100160
Model Number: CR029

Schwinn® 420 Elliptical - 2010 Model

The Schwinn® 420 Elliptical provides 12 preset programs for workout variety with a small footprint. BioGlide motion technology allows for a natural elliptical stride. Schwinn elliptical trainers are designed to deliver a comfortable workout with maximum results.

Best Reviewed Top Rated
  • Great Value
  • Quiet Operation
  • Easy to Assemble

This product is no longer for sale.

Please see our current line of Schwinn® Ellipticals.

Order by December 16

Product Rating

Product Features

BioFit™ Comfort

  • Biomechanically designed linkages means a comfortable and natural elliptical path
  • Ergonomic handles for multiple workout positions

BioDyne™ Performance

  • Bi-directional pedaling allows you to pedal forward or backward to target specific muscle groups.
  • Perimeter weighted flywheel with high inertia for smooth, consistent workouts
  • Oversized stabilizers and levelers that are built-in for a solid workout platform

BioConnect® Feedback

  • 12 workout programs
  • Integrated grip heart rate system
  • 16 resistance levels
Performance Features
Resistance Levels 16
Resistance System Quiet Magnetic ECB (Eddy current brake) resistance
Stride Length Fixed, 18" (46 cm)
Fixed and Moving Handlebars Yes
Articulating Footplate Yes
Programming Options
Number of Workouts 12
Workout Programs 1 Manual, 8 Profile
Feedback Programs No
Display Features
Display Type LCD
Display Readout Time, Interval Time, RPM, Watts, Distance, Pulse, Speed, Calories, Resistance Level, Course Profile
Heart Rate Monitor Grip Heart Rate Sensor
Details & Warranty
Warranty Frame: 5 years, Parts: 1 year, Electronics: 1 year, Wear Parts: 90 days

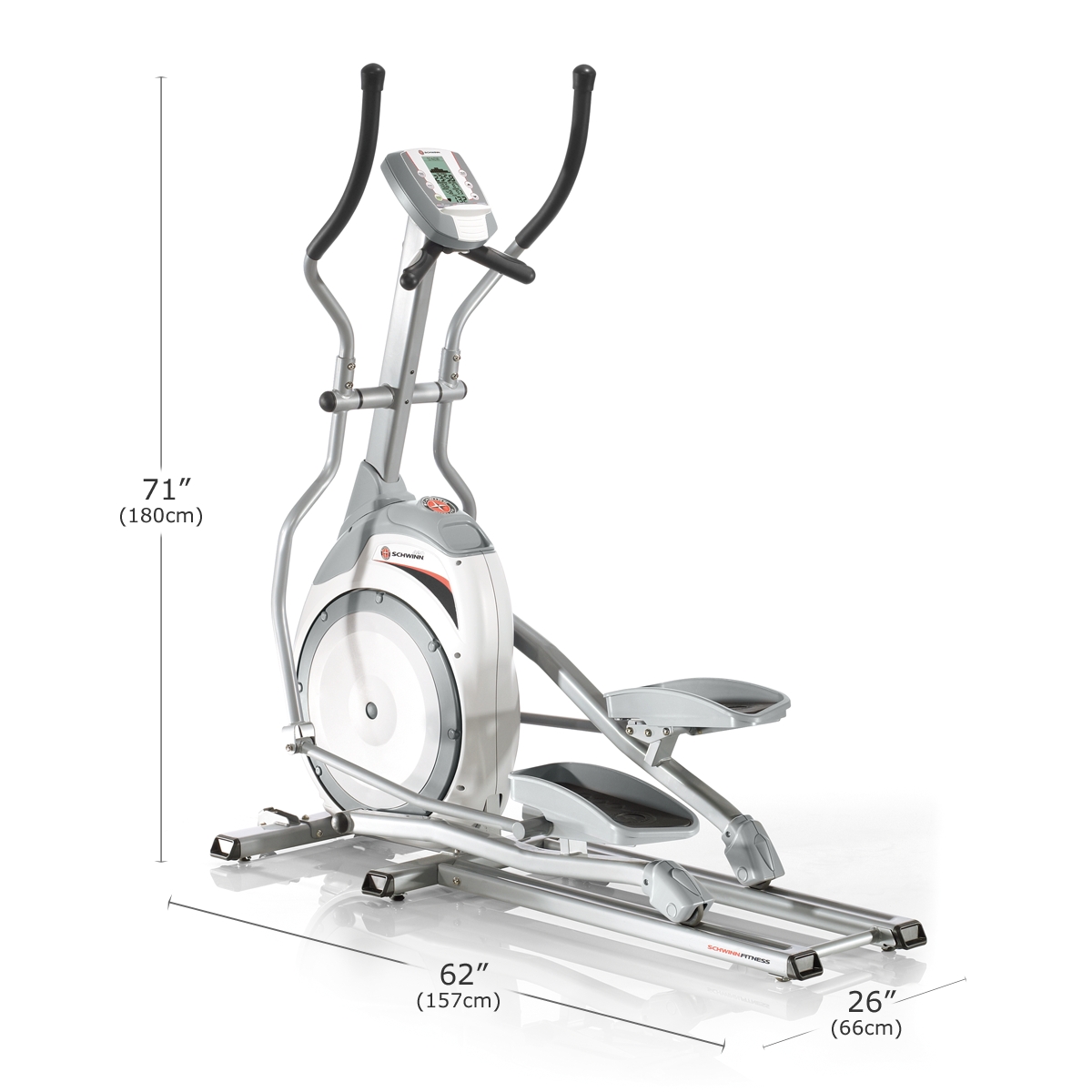

Dimensions 62"L x 26"W x 71"H (157 x 66 x 180 cm)
Minimum Ceiling Height The maximum height of the footplate is 19" (49 cm). Add that to your height, plus several inches for comfortable clearance, to calculate the minimum ceiling height.
Machine Weight 154 lbs (70 kg)
Maximum User Weight 300 lbs (136 kg)
Power Requirements AC Adapter
Fan No
Transport Wheels Yes
Water Bottle Holder No
Reading Rack Yes
